• Product Description

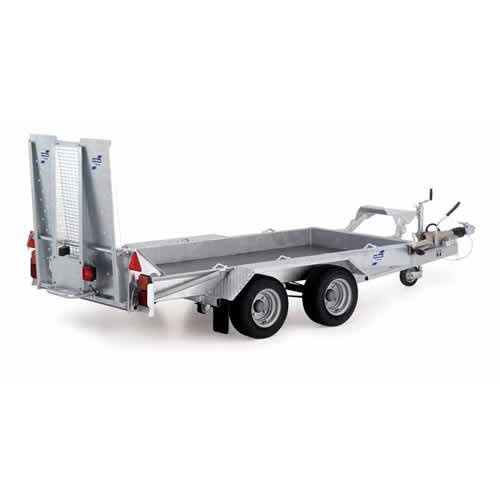

Higher Spec Ifor Williams GH1054 Trailer with 3' 9" Mesh Ramp & LED lights front & rear

9' 11" Long x 5' 4" Wide, Gross Weight 3500kg, 185/70R13C Tyres.

The GH plant trailer gap spec comes with a 40mm eye and is suitable for carrying a wide selection of plant machinery, including tracked excavators and many items of wheeled equipment such as rollers and a variety of access platforms. It has a payload of 2840kg and the loading angle during loading is 13 - 15 degrees

Specification & Features:

  • Galvanized steel chassis, panels and framework
  • 24mm phenolic coated laminate platform
  • Spring assisted ramp with integrated ramp supports
  • Raised bucket rest with bucket lip
  • Ifor Williams beam axles (Two), parabolic leaf spring suspension system
  • Sealed for life unitized wheel bearings
  • 185/70R13 tyres
  • Tyre Pressure 6 Bar (87PSI)
  • Full regulation lighting with detachable lighting cable
  • 12v/24v LED Lights
  • Step-on steel treadplate mudguards
  • Heavy duty jockey wheel
  • Five pairs of 500kg lashing points (welded) per trailer
  • Three pairs of 500kg lashing points (bolt-on) per trailer
  • 40mm coupling eye - tow height when laden 394mm

Vew the Ifor Williams GH, GX & GP Plant Trailer Brochure & Price Lists

Download the Ifor Williams GH1054 Plant Trailer Gap Spec Technical Specification Sheet

Ifor Williams Trailers Ifor Williams GH1054 Plant Trailer Gap Spec (LEDs) / TG354301MR/40/P

Supplier: Ifor Williams Trailers
Product Code: TG354301MR/40/P
Please Call us for a price
Ask a question

Product SKU: TG354301MR/40/P
