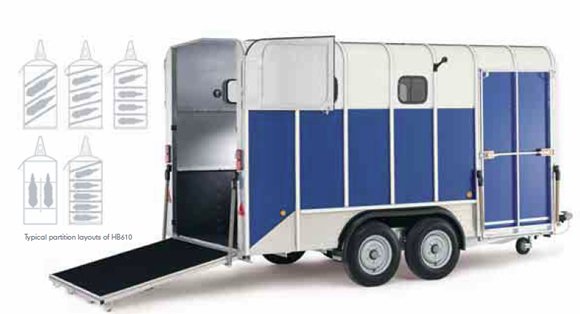

Ifor Williams HB610 Horsebox Trailer


Model dimensions can be viewed on the specification tab


Equine Rescue Services

12 months FREE Equine Trailer Assist Membership worth 52. This is fantastic cover which gives you peace of mind for both your horse and your trailer in the event of a breakdown. Remember, your horse trailer and any horses on board will NOT be covered by your towing vehicle breakdown membership. This membership means that in the event of your horse trailer breaking down your horses and trailer will be taken care of (In order for this to be valid you must already have breakdown cover on your towing vehicle).

The HB610 represents Ifor Williams largest horse trailer and can carry two large horses up to 17.2 hh with room to spare, three small horses or up to five ponies. The trailer has a headroom of 2.3m and a locking groom s door fitted as standard.

As with the HB510XL, the HB610 has a maximum gross weight of 3500kg. However, by offering additional trailer width, the telescopic partition system allows the possibility of a two horse, triple horse (small) or up to five pony* horse trailer.

The wide front unload ramp, which comes as standard, makes this model unique and very useful for both horse and owner. An additional benefit is the extra storage space available in the wind deflector, accessible from inside the trailer.

The sliding windows and roof vents provide a comfortable and safe environment for your horse, ensuring plenty of light and fresh air. Additional comfort is provided through thick rubber floor matting.

*Animals must not be carried adjacent to the groom s door under any circumstances. Please refer to the partition layouts for guidance.

The HB610 front ramp provides a headroom of 1.9m (74 ) and may not be suitable for front unloading of horses over 16.2hh.

The HB610 is now only available in black or silver.

Unladen Weight1450kg
Gross Weight3500kg
Axle TypeTwin
Wheel & Tyres
Size175R16C or 6.50 R16C
Internal Length4.25m
Internal Width2.07m
Overall Length5.74m
Overall Width2.3m
Stall WidthVarious
Stall Length min/maxVariou

Ifor Williams Trailers Ifor Williams HB610 Horsebox Trailer / TG685100

Supplier: Ifor Williams Trailers
Product Code: TG685100
Please Call us for a price
